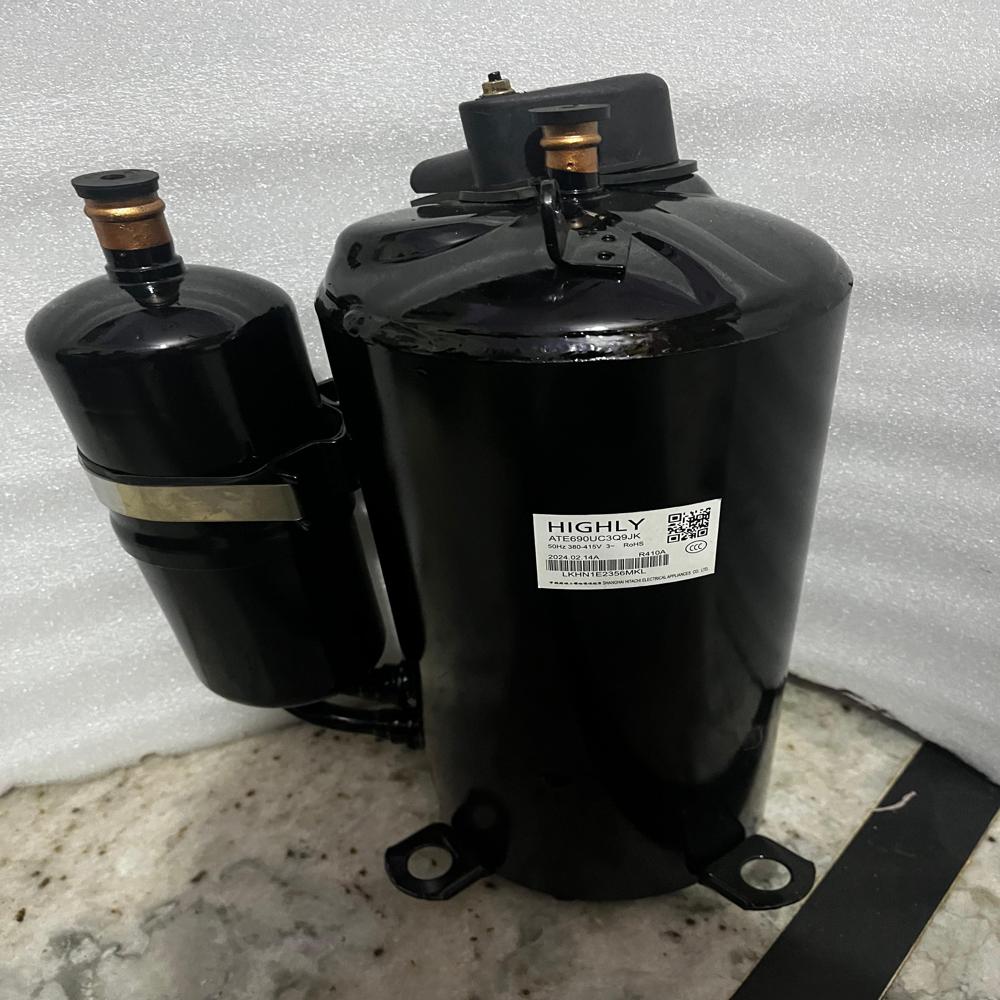

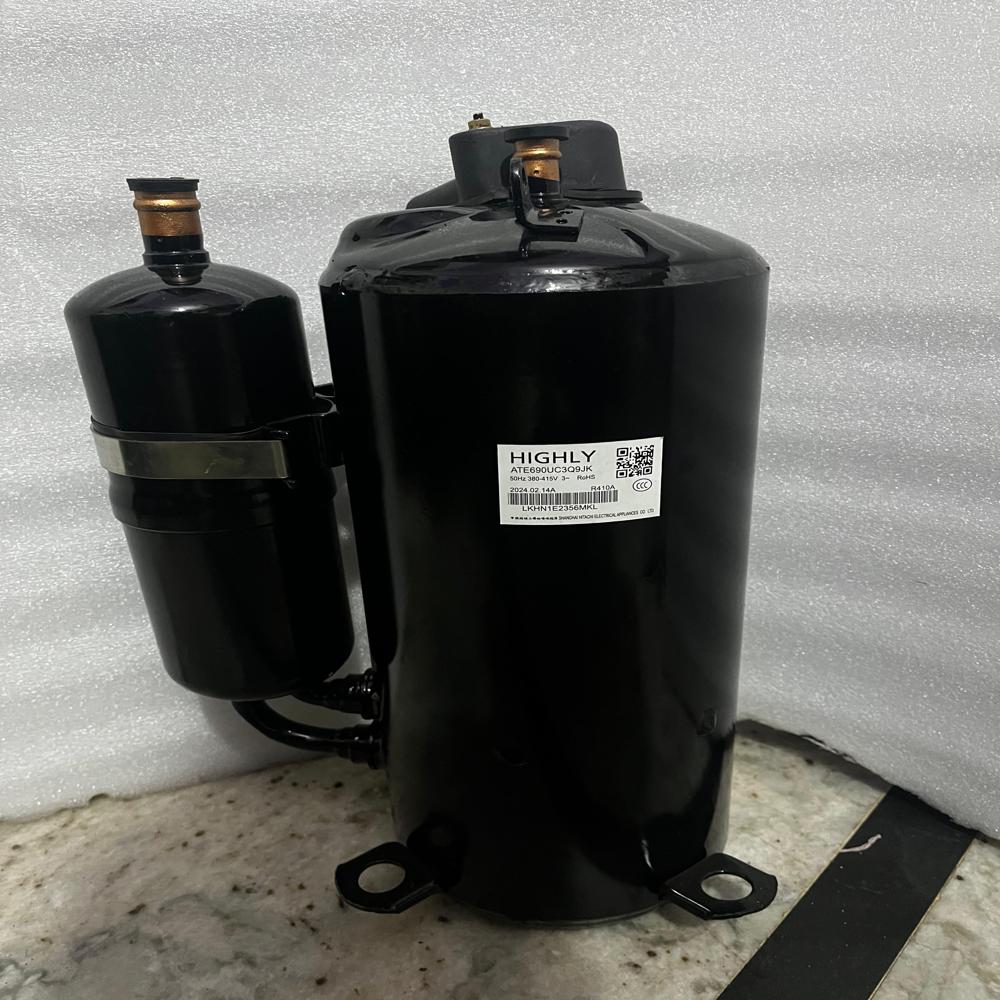

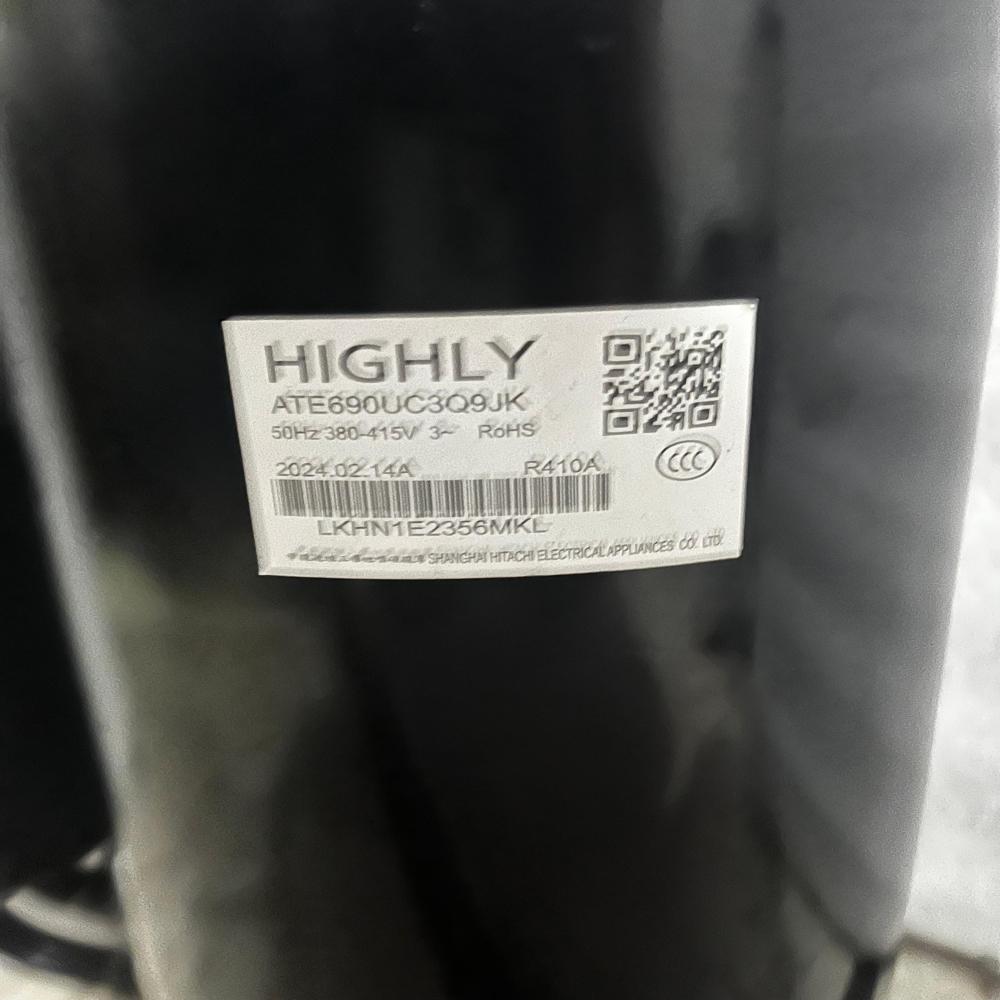

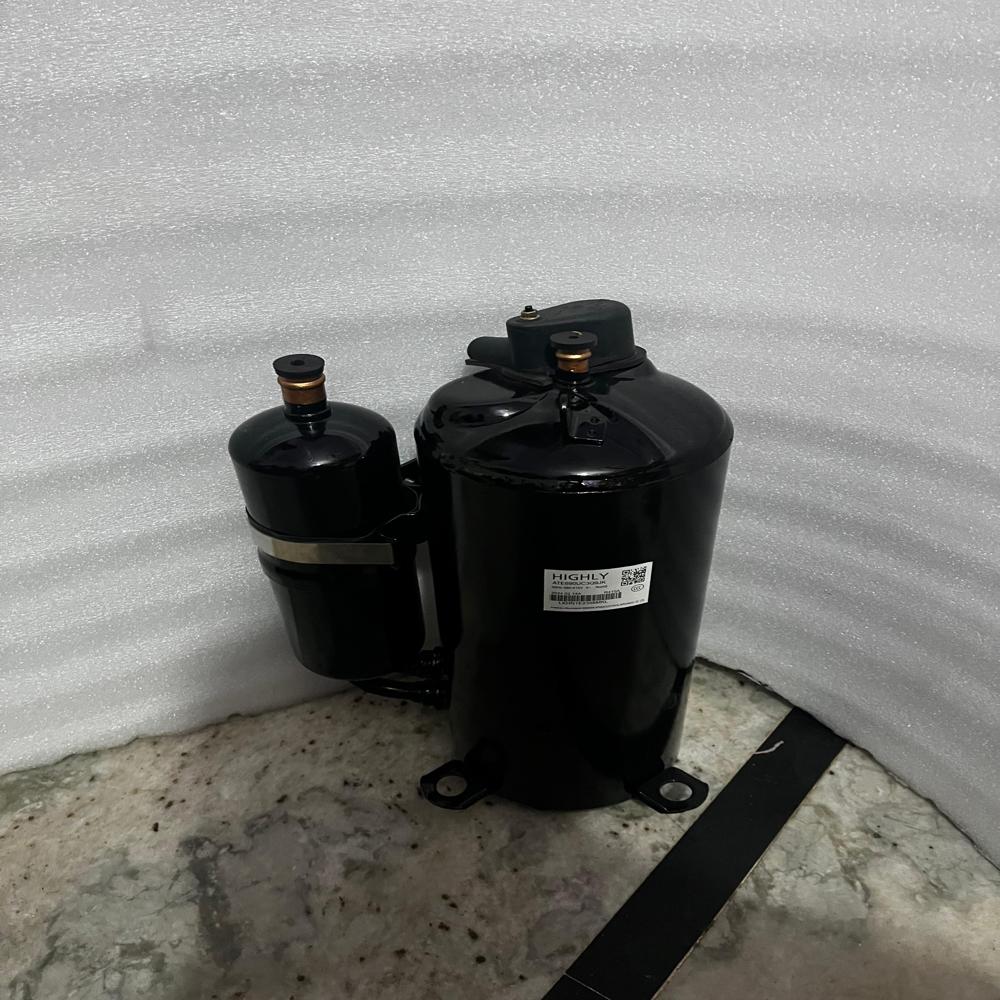

# Highly ATE690 (5 Ton) Rotary Compressor

The Highly ATE690 (5 Ton) rotary compressor is a high-capacity twin rotary, hermetically sealed compressor designed for commercial air conditioning and refrigeration systems. It is widely used in packaged AC units (PAC), ductable ACs, and light commercial HVAC systems.

Working Principle

• It works on a twin rotary mechanism, where two rollers rotate inside cylinders to compress refrigerant gas.
• The gas is compressed continuously, producing smooth, efficient, and stable cooling performance.
• Compared to single rotary compressors, twin rotary provides better balance and less vibration.

Key Features

• Capacity: Approx. 5 Ton ( 5 HP / 60,000 BTU/hr)
• Type: Twin Rotary Hermetic Compressor
• Refrigerant: R410A / R22 / R32 compatible
• Voltage: Typically 380V, 50Hz (3-phase)
• High Energy Efficiency: Designed for low power consumption
• Low Noise & Vibration: Due to twin rotary design
• Compact & Lightweight: Easy installation in AC units
• T3 Condition Compatible: Suitable for high ambient temperatures (like India)

Applications

• Packaged Air Conditioners (PAC)
• Ductable AC systems
• Commercial split AC units
• Light industrial cooling systems

Performance Highlights

• Provides stable gas flow and pressure output for consistent cooling
• Uses advanced rotary technology for efficient and reliable operation
• Designed with fewer moving parts, reducing wear and maintenance

Advantages

• Higher efficiency than reciprocating compressors
• Smooth and continuous operation
• Long service life
• Lower noise and vibration
• Suitable for continuous operation in hot climates

Limitations

• Sensitive to voltage fluctuations
• Requires proper lubrication and clean refrigerant
• Not suitable for very large industrial systems beyond its capacity
